TC101A Thermocouple based Temperature Recorder (TC101A)

  • TC101A  Thermocouple based Temperature Recorder
  • TC101A  Thermocouple based Temperature Recorder
  • TC101A  Thermocouple based Temperature Recorder
  • TC101A  Thermocouple based Temperature Recorder
167,14 €
Cena brez DDV: 137,00 € (DDV: 22,00 %)

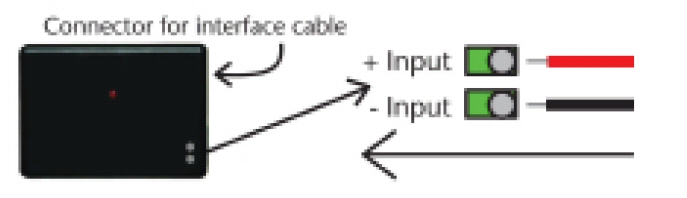

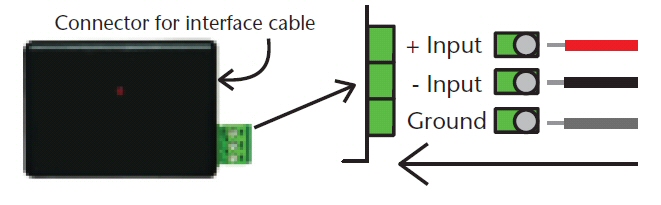

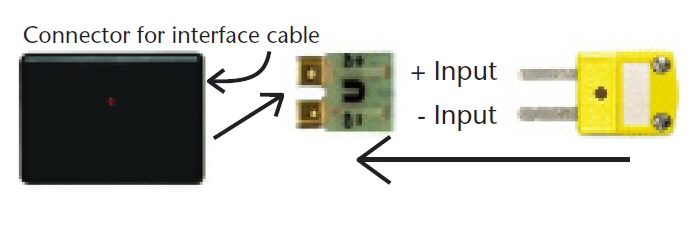

The TC101A is one of MadgeTech’s newest data loggers. It is available with a miniplug, screw terminal or terminal block thermocouple probe connection.
It is part of a new series of low cost, state-of-the-art data logging devices. MadgeTech has taken the lead in offering the most advanced, low cost, battery powered data loggers in the world today.

The TC101A offers a 10 year battery life, 1 second reading rate, a multiple start/stop function, ultra-high speed download capability, 500,000 reading storage capacity, optional memory wrap, battery life indicator, optional password protection, programmable high-low alarms and more. Our research has shown that the TC101A is second to no other data logger when it comes to price and performance.

Using the MadgeTech Software, starting, stopping and downloading from the TC101A is simple and easy. Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, K or °R. The data can also be automatically exported to Excel®
for further calculations.

As the leader in low power data logger technology, MadgeTech continuously improves its products and develops solutions to meet ever-changing challenges. The TC101A was designed with our customers in mind. MadgeTech offers free firmware upgrades for the life of the product so that data loggers already deployed in the field can grow with new technological developments. Units do not need to be returned to the factory for upgrades. The user can do this automatically from any PC.

Thermocouple probe sold separately.

Termočlen konektor
Količina



TEMPERATURE

Internal Channel Temperature Sensor Semiconductor
Internal Channel Temperature Range -40°C to +80°C (-40°F to +176°F)
Internal Channel Temperature Resolution 0.1°C (0.018°F)
Internal Channel Temperature Calibrated Accuracy ±0.25°C (±0.45°F)
Remote Channel Temperature Sensor Thermocouple Types J, K, T, E, R, S, B ,N
Remote Channel Temperature Range Thermocouple Dependent
Remote Channel Temperature Resolution Thermocouple Dependent
Remote Channel Temperature Calibrated Accuracy Thermocouple Dependent

GENERAL

Memory 500,000 readings; software configurable memory wrap
250,000 readings in multiple start/stop mode
Reading Rate 1 reading every second to 1 every 24 hours
Baud Rate 115,200
Cold Junction Compensation Automatic
Channels 1 Internal & 1 Remote
LED Indicators Red & Green
Battery Life 10 years typical at a 15 minute reading rate
Material ABS plastic
Dimensions 1.4" x 2.5" x 0.6” (36mm x 64mm x 16mm)
Operating Environment -40°C to +80°C (-40°F to +176°F), 0 to 95%RH non-condensing
Required Interface Package IFC200
Approvals CE

Product Tables

Thermocouple Range(°C) Resolution Accuracy
J -210 to +760 0.1°C ±.5°C
K -260 to +1370 0.1°C ±.5°C
T -260 to +400 0.1°C ±.5°C
E -260 to +980 0.1°C ±.5°C
R -50 to +1760 0.5°C ±2°C
S -50 to +1760 0.5°C ±2°C
B +60 to +1820 0.5°C ±2°C
N -260 to +1300 0.1°C ±.5°C
