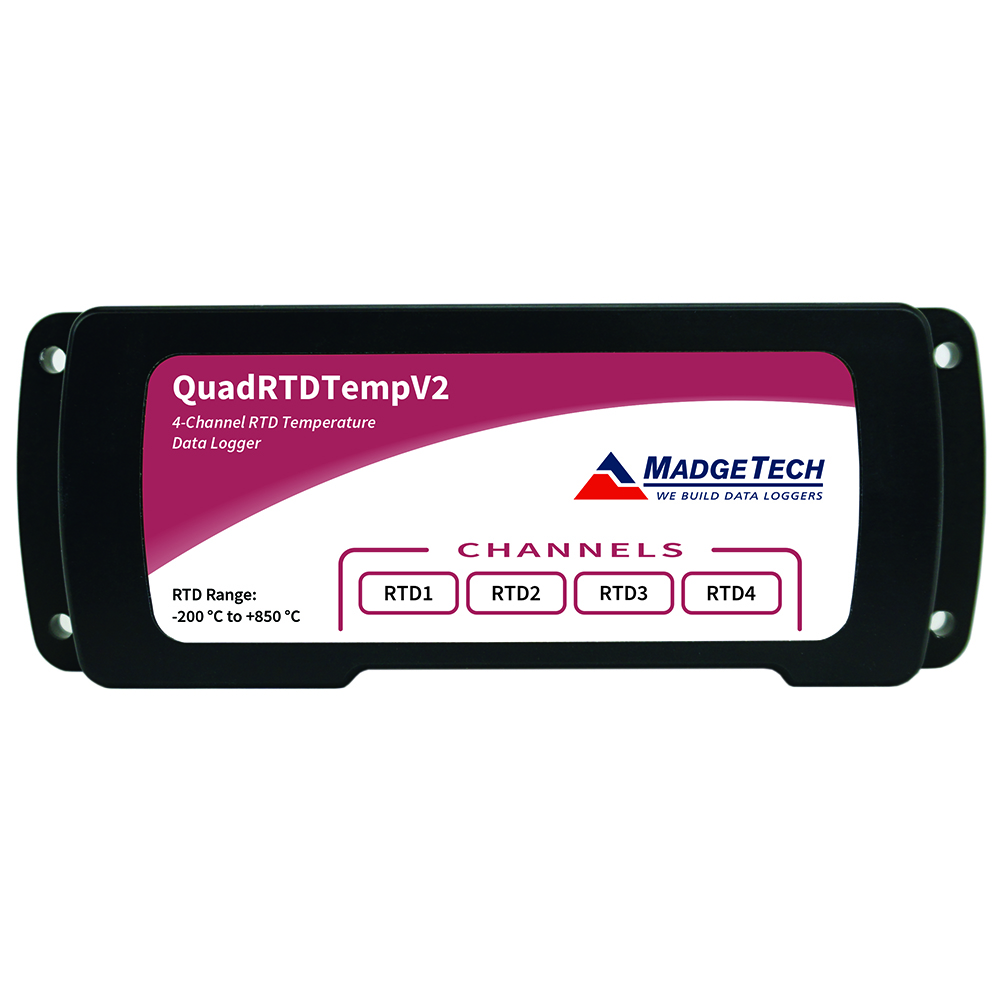

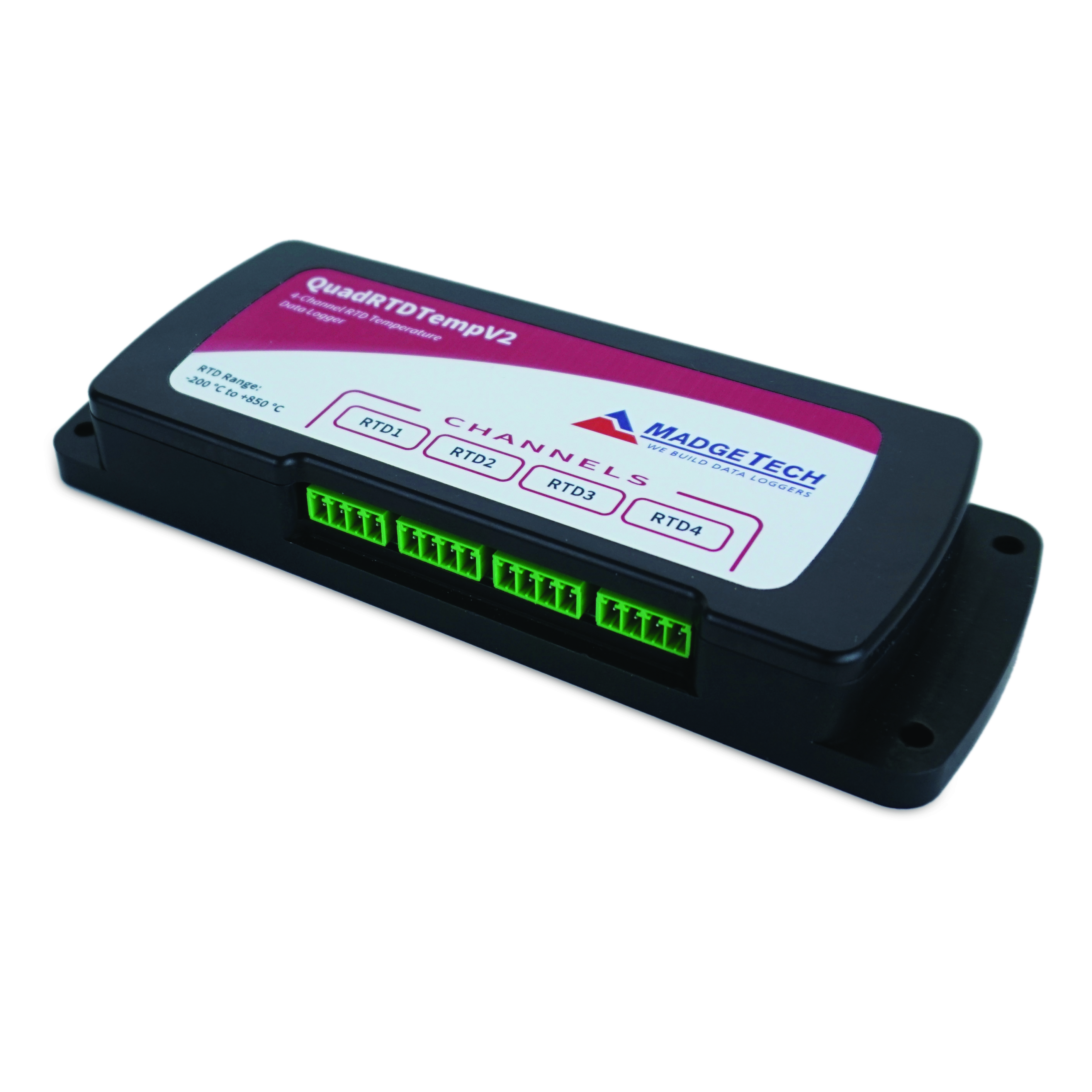

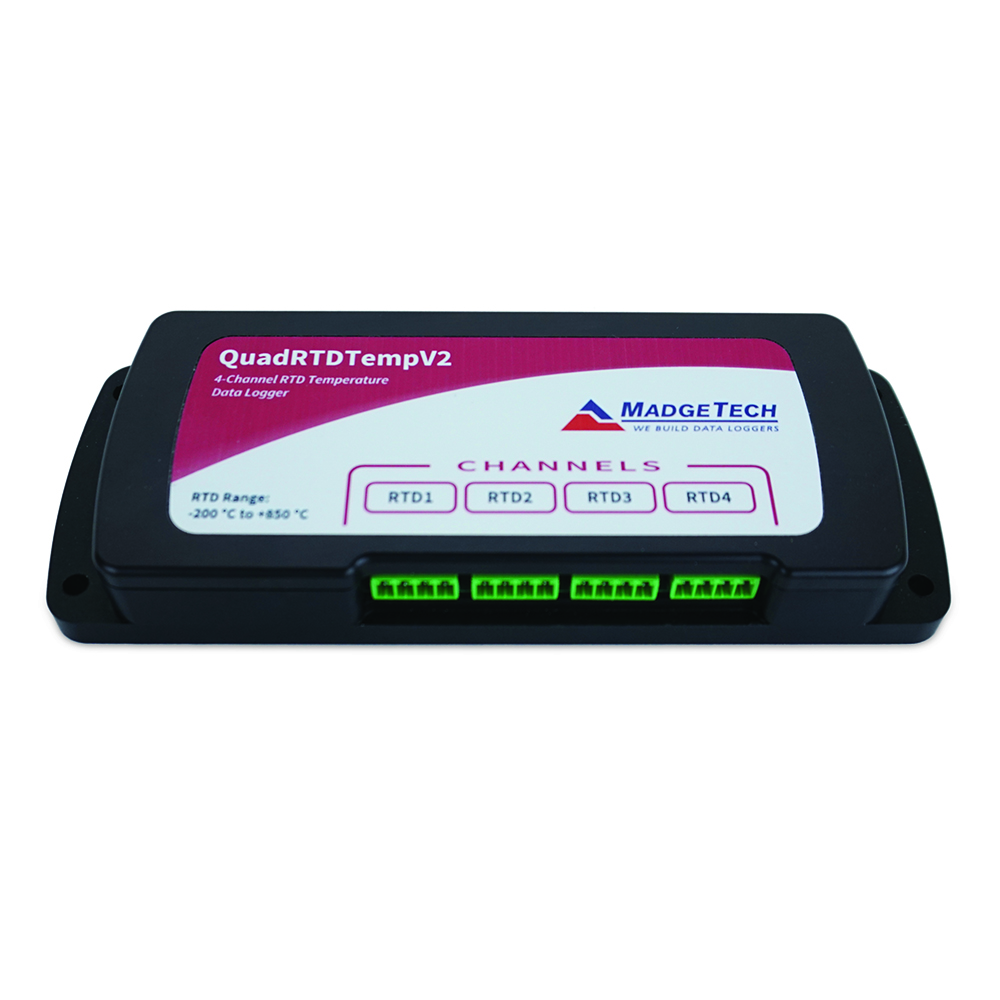

The QuadRTDTempV2 is a 4-channel, RTD-based temperature data logger with screw terminals and wall mounted power adapter.
Depending on the probe, QuadRTDTempV2 can measure and record temperatures from -200 °C to +850 °C (-328 °F to +1562 °F). This 100 Ω device accepts 2, 3 and 4-wire RTDs and can store up to 349,184 readings. To maximize memory capacity, users can enable or disable channels.
The QuadRTDTempV2 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
RTD probes sold separately.
General
| Memory | 349,184 readings (all channels enabled) |
| Reading Rate | 4 Hz up to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| Channels | 4 |
| Battery Life | 1 year |
| Material | Anodized aluminum |
| Dimensions | 2.7 in x 7.2 in x 1.0 in (69 mm x 184 mm x 26 mm) |
| Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
Temperature
| Temperature Sensor | External: 2,3, or 4 wire 100 Ω Platinum RTD |
| Temperature Range | 18 Ω to 400 Ω -200 °C to +850 °C (-328 °F to +1562 °F) (Probe Dependent) |
| Temperature Resolution | 0.0005Ω 0.001 °C (0.0018 °F) |
| Temperature Calibrated Accuracy | ±0.015 Ω ±0.04 °C (±0.072 °F) (Probe Dependent) |
